Custom MT Series

The Custom MT Series of direct thermal printer mechanisms are for use with a variety of 2 and 3 inch roll paper width formats. The MT002 & MT558 mechanisms have a plastic chassis to save weight and can be powered from low voltages for battery portable applications.

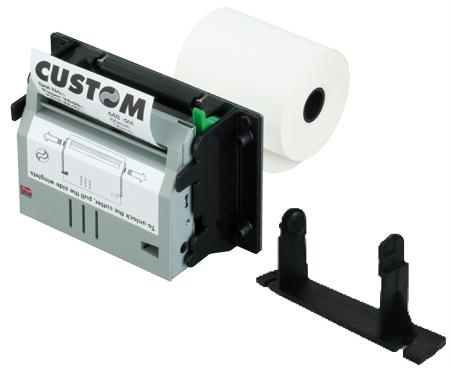

The MT2460/MT2480 models are more robust for fixed applications. They feature a metal body which gives more strength and rigidity to the mechanism, this in turn delivers a much better quality and more consistent print. The metal can also dissipate heat more quickly allowing faster print speeds and higher duty cycles. An autocutter module is available for the MT2460/2480 models which, along with their high printing speed, makes them ideal for integration into POS, ticketing and receipting applications. The range can detect pre-cut labels and the silicone rubber roller makes then compatible with Linerless continuous label stationery.

MT Series

Custom MT series thermal printer mechanisms

Features & Benefits

  • Direct thermal, 58/60/80mm printer mechanisms
  • High prinitng speed (150mm/sec) - for on demand ticket/receipting
  • High torque motor - for driving large diameter rolls
  • Metal frame (galvanized/aluminium alloy) - for consistent print quality & better heat dissipation
  • Black mark detection - for label processing
  • Silicone rubber roller - compatible with linerless label rolls
  • Auto-loading - for fast, simple paper change

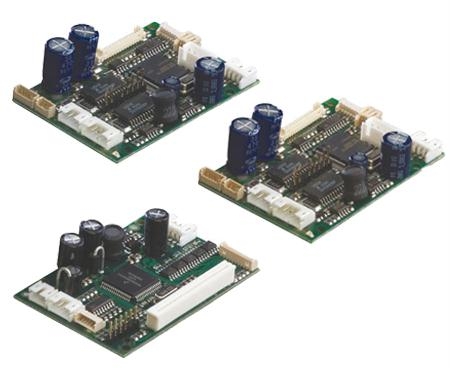

  • Controller board available

Custom MT Series Specifications

SPECIFICATION MT002 MT558 MT2460 MT2460VA MT2480 MT2480A
Printing System Direct Thermal
Contsruction Plastic Galvanized Aluminium alloy
Loading System Easy load Autoload
Cutting System Tear bar required Autocutter Tear bar Autocutter
Media Thermal Rolls: Paper, Die cut/continuous Label, Linerless label
Paper width (mm) 58 60 80/82.5
Max Paper dia 60mm 55mm
Paper thickness 0.055mm 0.055 to 0.08mm 0.06 to 0.07mm
Resolution 200 dpi, 8 dots/mm
Print width 48mm/384dots 56mm/448dots 80mm/640dots
Printing speed 90mm/s 65mm/s 150mm/s 140mm/s
Dimensions (WxDxH)mm 67.3x33x17.4 84.6x44.3.4x20 85.4x49x20 112x58x20
Weight 36g 72g 110g 88g
Sensors Head temperature, Paper out, Head up(not MT002)
Power VDC 3.3 to 7.2 5 to 7 24
MCBF 50 km
Operating temp. 5 to 50°C


  • Auto-installing Driver - WinXP/Vista/7 (+64bit support) - Linux Drivers (C.U.P.S.) 32/64 bit compatible
  • Remote status monitor
  • LogoMake - Windows utility to edit graphic logos & load them into flash memory
  • FontMake - Windows utility to make or edit fonts & load them into flash memory
  • UpgCePrn - Utility to update printer firmware
  • DriverManager - Windows utility to manage/remove Custom printer drivers
